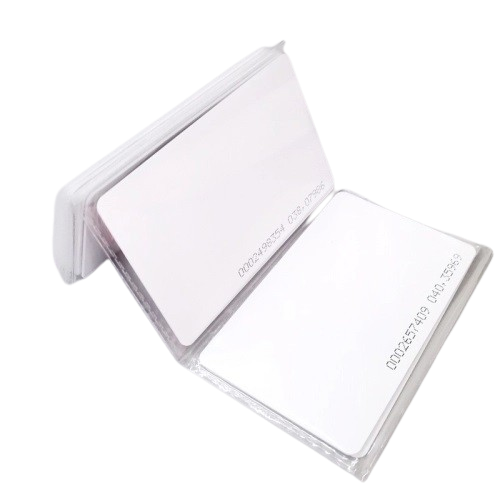

Proximity 125khz CardsEM Prox Cards
A secure access control smart card
Key Future
-
-
The HID 125 kHz Prox and iCLASS 13.56 MHz combine read/write contactless smart card technology into a single card.
- This product complies with ISO standards regarding thickness and is suitable for use with direct image and thermal transfer printers.
- Provides the option to incorporate a magnetic stripe, barcode, anti-counterfeiting elements, personalized artwork, or photo identification.
- iCLASS comes in 2k bit (256 byte), 16k bit (2K Byte), or 32k bit (4K Byte) memory options.
- Supports all existing HID card formats, including Corporate 1000
- The HID access control application area on the card can be programmed with any existing HID format using field programming support.
-
Proximity 125khz CardsEM Prox Cards is also called Low frequency cards. They are widely used with its low price and simple operation. They are commonly used in application such as access control, payment cards & staff identification etc.
We provide wide range of proximity 125KHz cards. EM and TK (EM compatible) are very popular ones .
Printing Option
- Offset printing
- Silkscreen printing
- Metallic gold/silver is also on Proximity 125khz CardsEM Prox Cards
Personalization
Magnetic Stripe Option: Loco 300oe,650oe,Hico 2750oe, 4000oe
Numbering: Jet dot printing, Thermal printing, Laser, UV Inkejet printing
Bar code, eg: EAN13, Code 39, Code 128, etc
Signature panel
Encoding
- Hole Punching, Embossed, Hologram
- Hot-Stamping silver/gold
- Scratch off
- Chip option
Card Construction:
The card is constructed using a thin and flexible material called polyvinyl chloride (PVC) laminate or a composite of Polyester/PVC.
Memory Type:
The memory type used in the card is EEPROM, which allows for both reading and writing of data.
| Chip | Supplier | Memory | Read & Write | Protocol |
| TK4100 | Tatwah Design | 64 bits | R/O | 18000-2 |
| EM4200 | EM Marin | 64 bits | R/O | 18000-2 |
| ATA5567/5577 | Atmel | 330 bits/363 bits | R/W | 18000-2 |
| EM4450 | EM Marin | 1 Kbits | R/W | 18000-2 |
| Hitag1 | NXP | 2048 bits | R/W | 11784/11785 |
| Hitag2 | NXP | 256 bits | R/W | 11784/11785 |
| HTS256 | NXP | 256 bits | R/W | 11784/11785 |
| HTS2048 | NXP | 2048 bits | R/W | 11784/11785 |
| Hitag uR064 | NXP | 64 bits | R/O | 11784/11785 |
| EM4205 | EM Marin | 512 bits | R/W | 11784/11785 |
| EM4305 | EM Marin | 512 bits | R/W | 11784/11785 |
